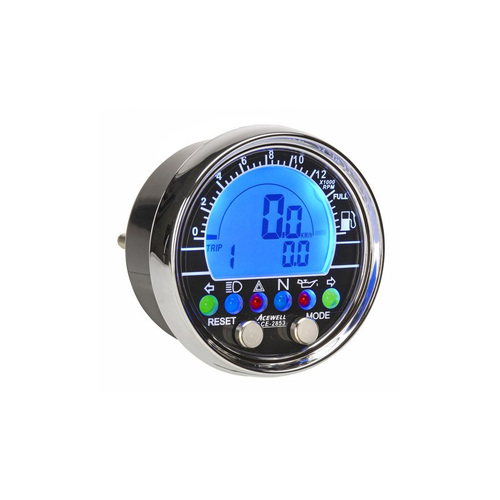

The discreet minimalism of Acewell’s 2853 all-in-one speedo/tacho make it an appealing choice for those seeking to maintain a clean, uncluttered control area. This unit is ADR approved for use in Australia and New Zealand on both motorcycle and passenger vehicles.

Acewell deliver a classic aesthetic without compromising function or performance, making the 2853 a clever option in any project.

Specs:

• 100% Waterproof
• Easy to read backlit LCD screen
• Digital tachometer up to 19,900rpm
• Hour meter and odometer readings stored in internal memory
• Includes RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
• E-Marked

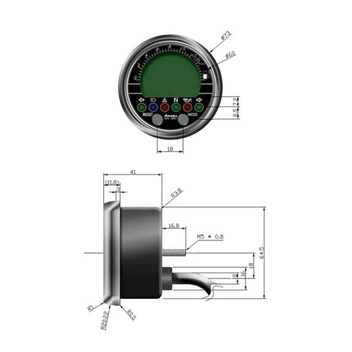

• Diameter 70mm, Depth 40mm
• Power Input: DC 12V
• Tachometer input: CDI or Ignition Coil Signal
• Speed Sensor: Reed sensor with magnetic bolts

Features:

• Digital tachometer 100-19,900rpm
• Bar graphic tachometer 500-12,000rpm
• Built-in RPM shift warning
• Speedometer 2.4-399km/h
• Max speed 2.4-399km/h
• Average speed 2.4-399km/h
• Trip meter (1 & 2) 0-999km
• Odometer 0-999,999km
• Clock 12 or 24 hour option
• Hour meter 1 & 2 0-99hrs
• Total hours 0-9999hours
• Bar fuel meter 0-7 bars

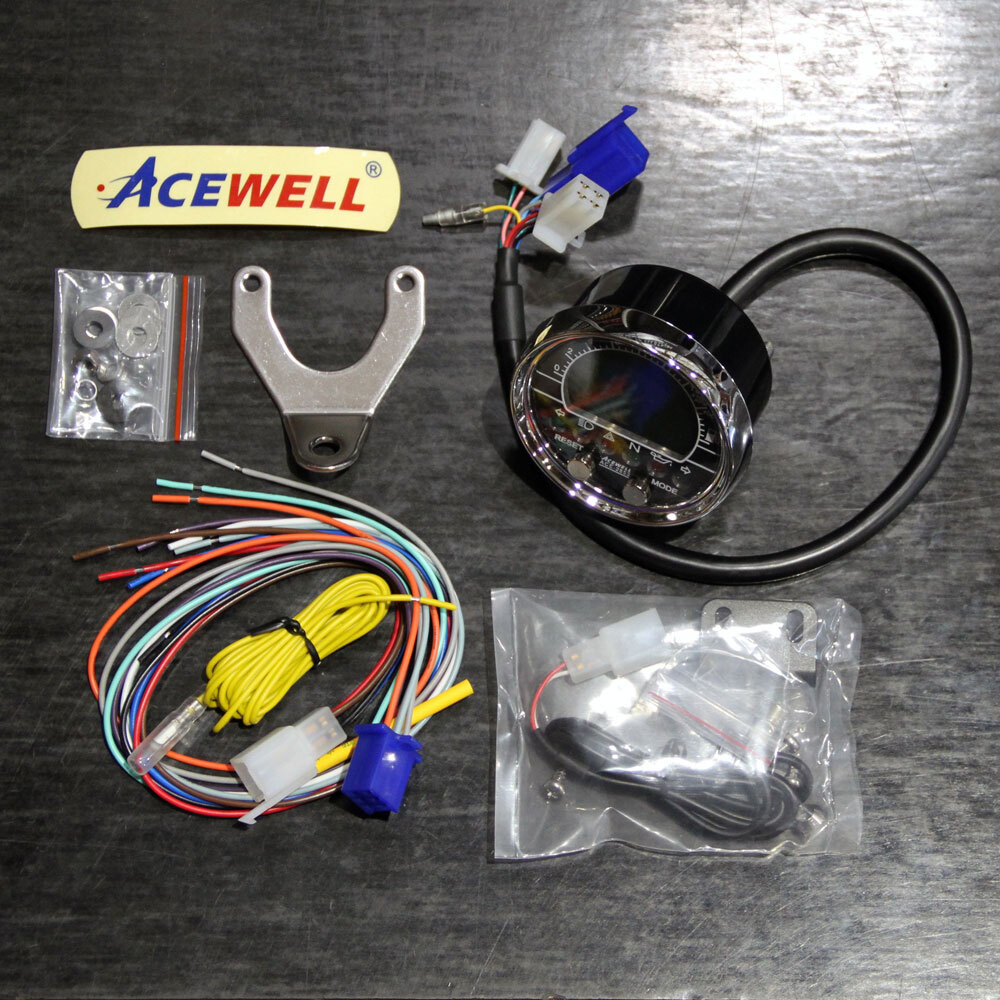

Kit Includes:

• Speedometer head unit
• Loom extention
• Speed senor kit with two magnetic bolts
• Wiring diagram

Installation:

The speedo can be flush mounted to a variety of surfaces or brackets. The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For bikes, simple replace a bolt in your front disc rotor with the included magnetic bolt, and align the reed switch with the magnet. Then program the tyre circumference into the Acewell. That will calculate speed, trip, and odometer readings. For cars, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts.
